IS200EDCFG1A Exciter DC Feedback Board

Brand Name : General Electric

Model Number : IS200EDCFG1A

Certification : CO

Place of Origin : USA

MOQ : 1 PC

Payment Terms : T/T, Western Union

Supply Ability : 999 PC A large number of inventory

Delivery Time : 2-3 WORK DAYS

Packaging Details : Brand new sealed

Brand : General Electric

Model : IS200EDCFG1A

Origin : USA

Warranty : 12 months

Port : Xiamen China

Delivery time : 5-7 days

The colour : Brand new

Payment term : T/T

Contact Now

PRODUCT: IS200EDCFG1A Exciter DC Feedback Board

Product Overview

S200EDCFG1A is an Exciter DC Feedback Board manufactured and designed by General Electric as part of the EX2100 Series used in Excitation Control Systems. At the SCR bridge, it detects field current and field voltage and communicates with the EISB board in the control panel through a quick fiber-optic link. High noise immunity and voltage isolation between the two boards are provided by fiber optics. Each signal travels on one of two fibers. The following are two fiber kinds that can be utilized for various distances:

  • Plastic-type fiber for distances up to 10 m
  • Hard-clad silica type for distances up to 90 m

Features:

• Four ‘dual’ 24 Vdc, 20 A MCB protected outputs - suitable for direct connection to a Trusted Controller/Expander Chassis or upstream protection for the Trusted 15-way Fused Distribution Unit (T8293).
• One ‘dual’ 24 Vdc, 3 A MCB protected output - suitable for direct connection to Trusted Fan Trays or other low power devices.
• Visual indication of MCB status.
• Common alarm output of MCB status via a volt-free contact.
• Option link for N+1 or 100 % redundant distribution.

Specifications:

Voltage Range 22–30 Vdc or 43–60 Vdc (link selectable)
Supply Current 23 A max
Fuse Outputs 30-off 3.1 5A fast blow 5x20 mm cartridge arranged in two banks of 15
Max Relay Contact Switching Voltage 60 Vdc or 125 Vac
Max Relay Contact Switching Current 0.5 A
Input Connection LU10.16 screw clamp terminal
Input Connection Conductor Clamping Range 0.5 mm2 to 16 mm2
Output Connector BLZ two-part terminal
Output Connector Conductor Clamping Range 0.5 mm2 to 2.5 mm2
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Non-operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity range (operating, storage & transport) 10 % – 95 %, non-condensing
Dimensions 79 mm x 285 mm x 109 mm
Weight 576 g

Details of delivery:

Warranty: 12 months.
Lead time: 1-2 working days.
Type of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets: Available on request.

Picture:

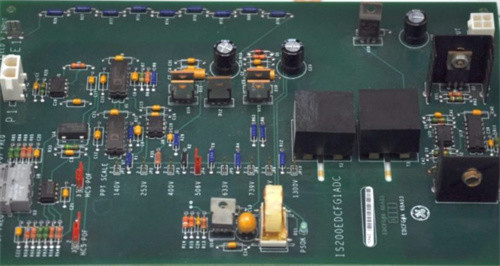

IS200EDCFG1A Exciter DC Feedback Board
